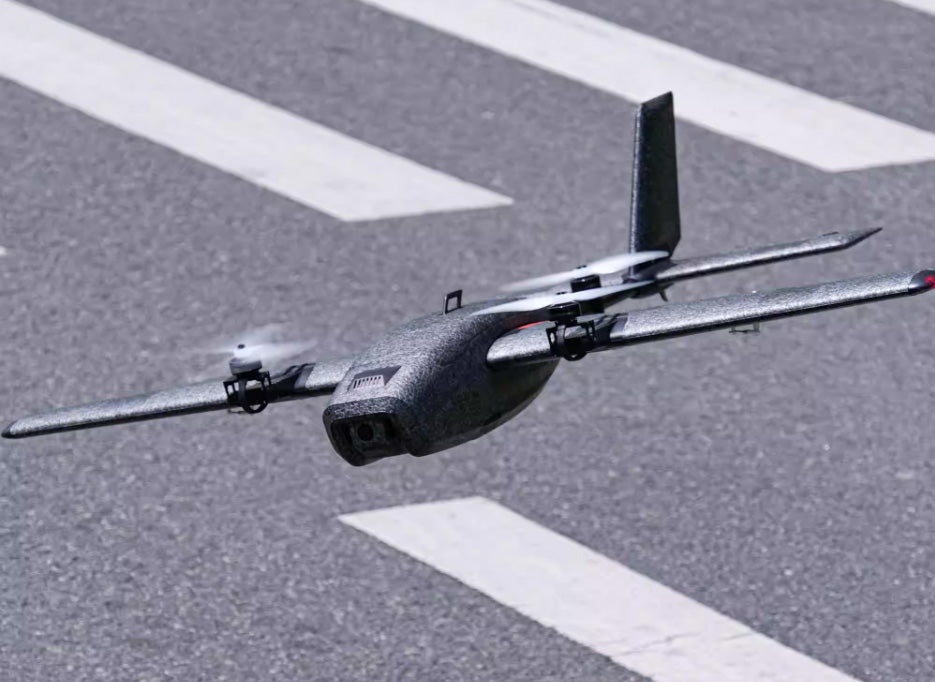

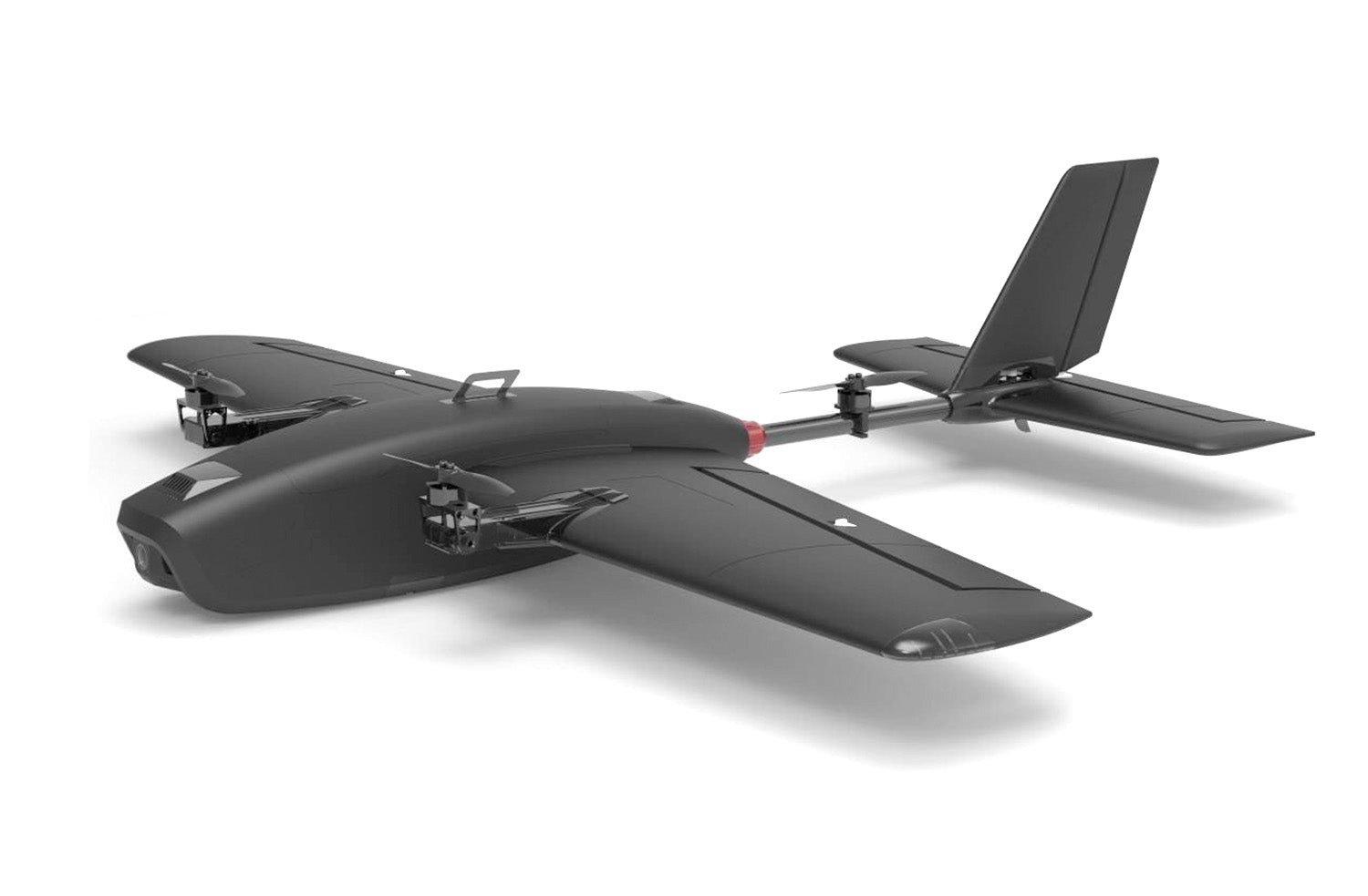

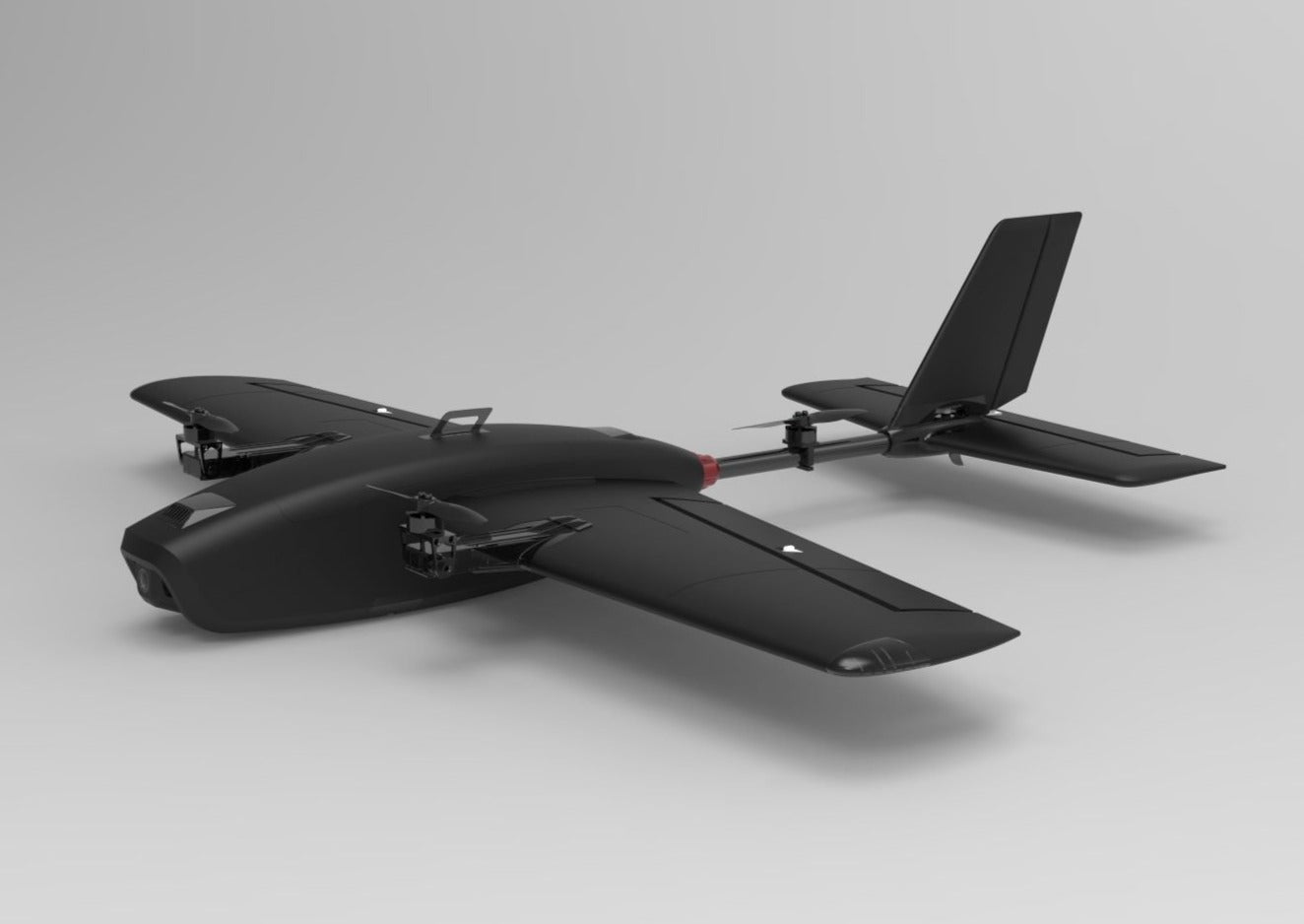

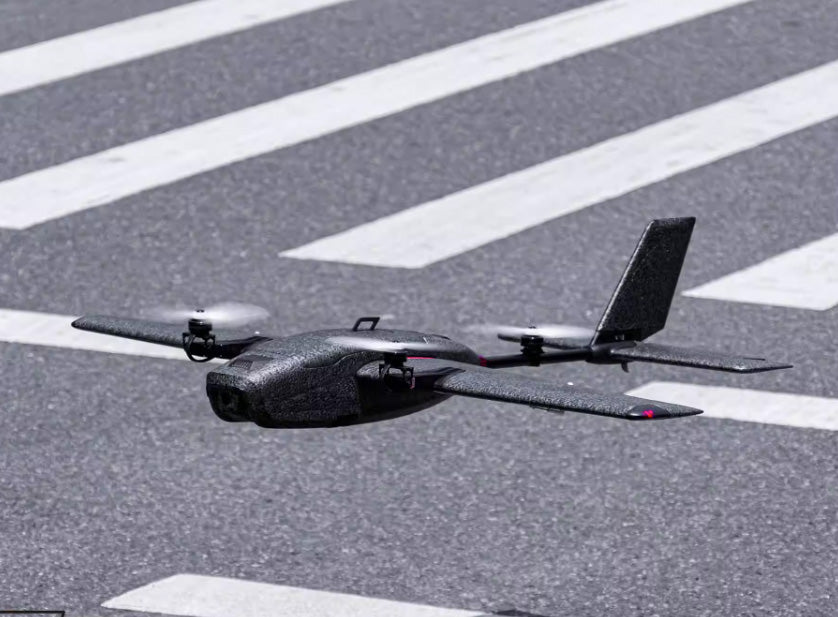

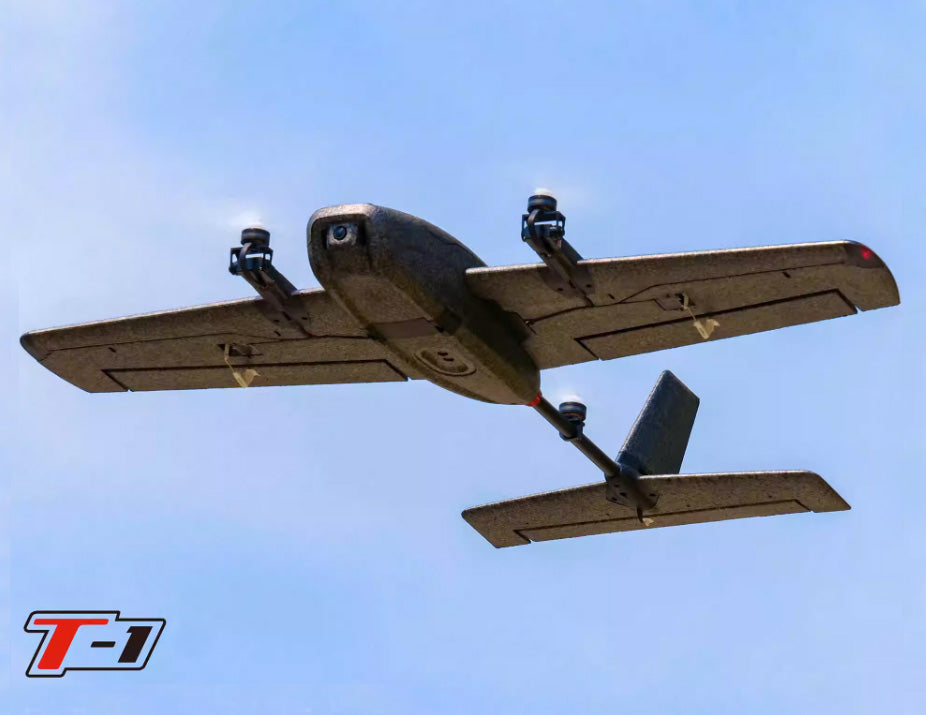

Hee Wing T1 Ranger VTOL PNP

1. Small, lightweight and portable at 730mm wingspan

2. Quick disassembly design. Assemble and disassemble for transportion in a minute

3. VTOL - Vertical Take Off and Landing

4. Superb aerodynamic design. Stable at low speed

5. Large internal space to carry battery and electronics with high flexibility to achieve the best CG

6. Front and rear hatch for maximum flexibility organising your electronics

7. Dedicated front FPV camera mount

8. White foam is now the same high dense version as Gray foam

9. New revised air intake for better cooling

10. Easily detachable main wings reduce damage during a crash



Brand : Hee Wing RC

Model : T1 Ranger VTOL - PNP

Color : Gray only

Wingspan : 730mm

Length : 645mm

Height : 140mm

Weight :

Takeoff Weight : 600g to 750gram

Fuselage Size : 245m(L) x 51mm(W) x 48mm(H)

Minimum Speed : <20km/h

Maximum Speed : >120km/h

Maximum Range : > 25km

Maximum Cruise Time : > 65min

Package Dimension : 400mm x 230mm x 155mmm



• 1x T1 Ranger VTOL - PNP

• 3x FX-1806 2000KV Motor (preinstalled)
• 3x FX-25A ESC
• 3x 7g Digital Metal Gear Servo
• 2x Metal Gear Tilt Servo
• 3x 5126 propellers
• Quick Release Wiring Plug for the Main Wings.


• PNP w/o FX-405 Flight Controller - comes with 5V 3A UBEC

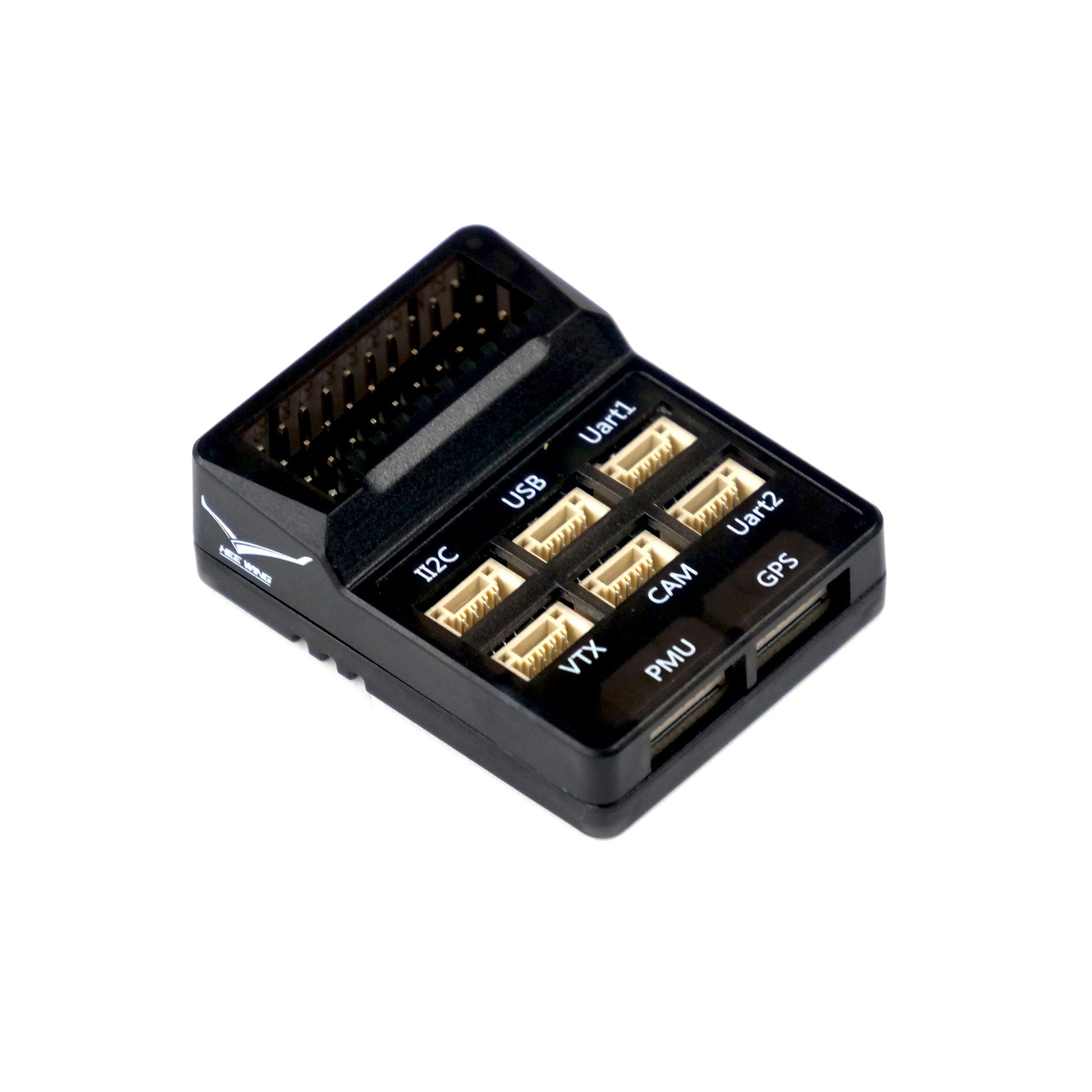

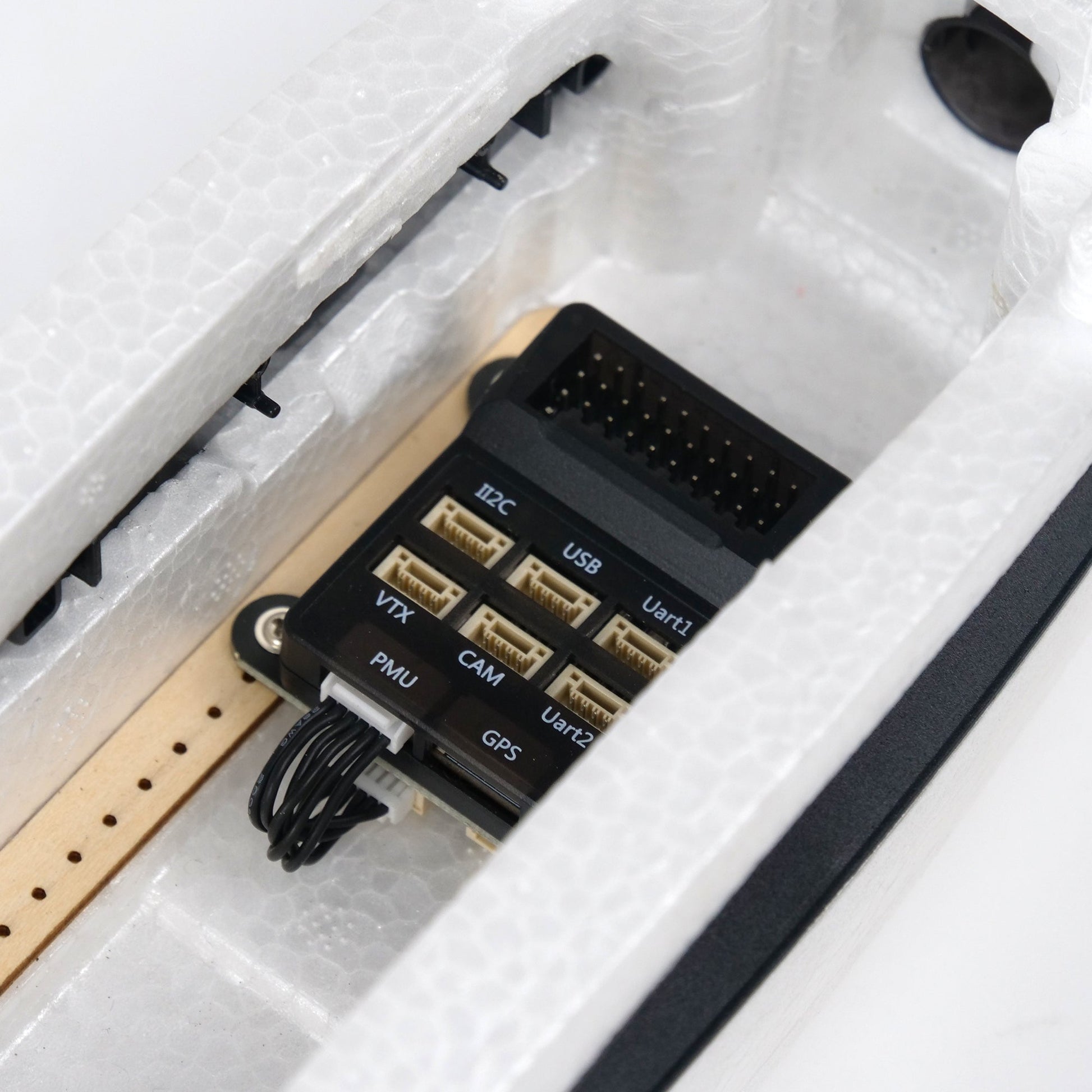

• PNP with FX-405 Flight Controller - Preinstalled + Preconfigured VTOL FX-405 Flight Controller with 5V/5A PMU & 9V/3A UBEC


Your T1 Ranger VTOL - PNP comes preinstalled and preloaded with Ardupilot VTOL parameters. If you want to try/experience the factory parameters, you just need to hook up the receiver, calibrate your radio, and set up the flight modes to match with the 3 or 6 positions switch on your radio as explained in the downloaded manual above and you are good to fly. If you are prefer to tune by yourself, please just clear/wipe data and download depends on your need.

* VTOL parameters are for reference only. We are not responsible for any issue such as crashing arising from this. You may adjust it accordingly.

If you accept and want to try factory parameters, but accidentally messed up, please just recover to default:



• Download Mission Planner here if you don't have already

• Download Ardupilot Firmware 4.3.5

• your FX-405 comes flashed with this firmware version 4.3.5 frrom the factory, you do not need to download & flash this. You only download and flash this firmware to your FX-405 if you have messed up the FC settings, or if you want to revert back to this firmware version, or if you want to reset it to factory settings.
• FX-405 VTOL Parameters

• your FX-405 comes loaded with this parameters from the factory. you only download and load this to your FC if you have messed up or altered the parameters and wish to revert back to Hee Wing's factory default parameters.

All Links are listed at the end to the description.
